Rotary printing
screens.

The first product we ever made, and still a core line. We supply textile printers at home and abroad across a wide range of mesh counts and sizes.

Production sizes

What sizes
we produce.

Repeat Circumference · mm
  • 640
  • 720
  • 810
  • 920
  • 1010
Length Screen length · mm
  • 1450
  • 1980
  • 2650
  • 3000
  • 3500
Mesh Mesh count 25–195

Every mesh count in between is available. Which one suits is decided during colour separation, from the character of the design and your printing conditions.

If you need something outside these sizes, ask first and we will check feasibility.

When your textile designs reach the production line ready for engraving, our technical team carries out a pre-production check.

Once mesh and lacquer have been prepared to suit the character of the design, the job is matched to a laser engraving machine and put into production.

Screens prepared during production go through a final check before packing. Once approved, they are packed with or without end rings, as you prefer.

How the mesh is chosen

Mesh selection depends on the character of the design and on your printing conditions. It is set after colour separation is complete — which is one reason keeping separation and engraving in the same place affects the result directly.

Delivery options

  • With end rings — fitted and ready for the machine
  • Without end rings — for use with your own
  • Protective packing sized to circumference and length

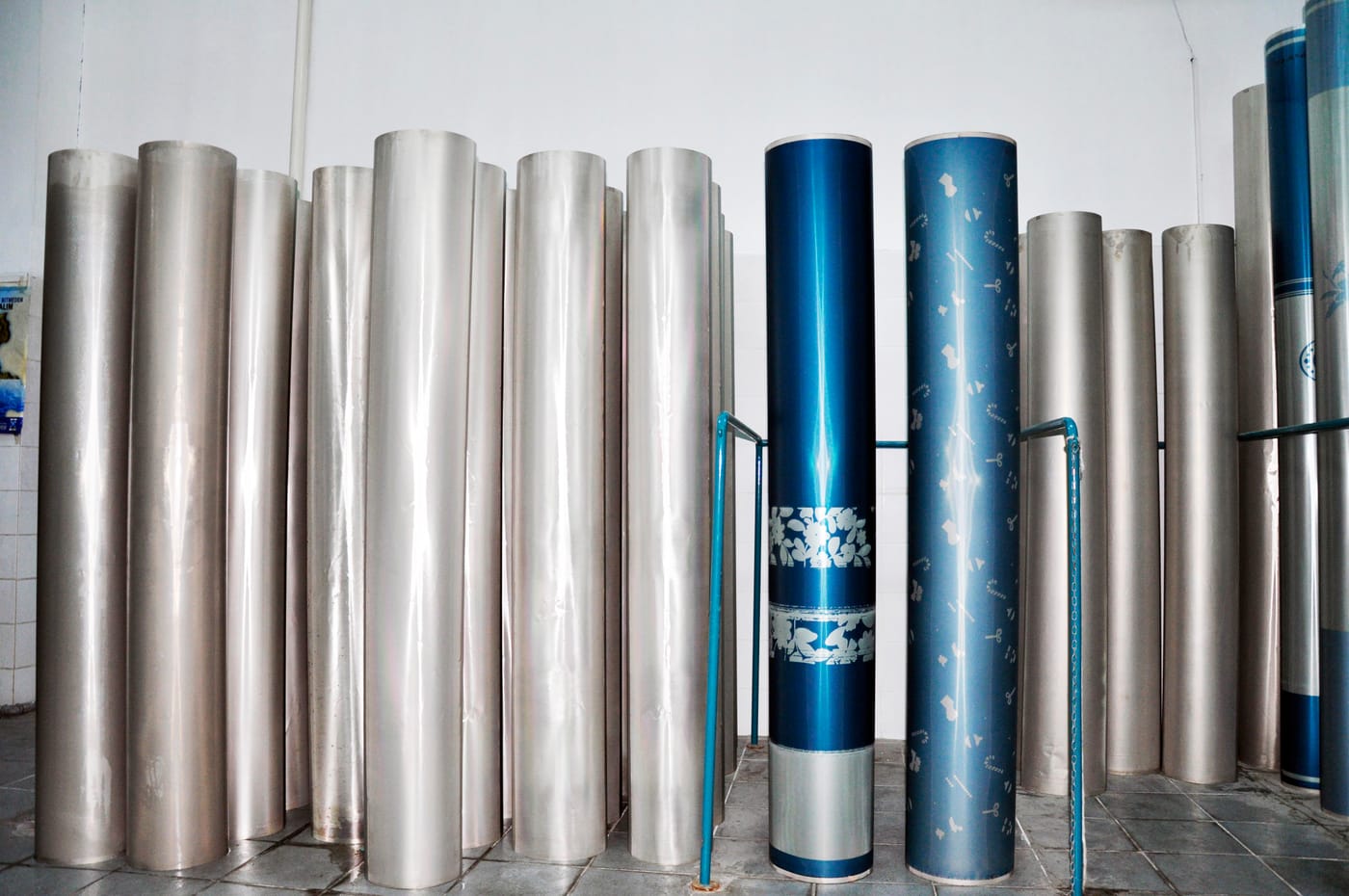

Finished rotary screens stored upright in the production hall
Screen park before dispatch

Whatever the
design.

Stripes, damask, fine-outlined florals, solid grounds — all of them run on the same line. But not every design wants the same screen.

A finely outlined floral needs a high mesh so the line does not break. A design with solid grounds works with a lower mesh that lets more paste through. When both appear on the same cylinder the mesh decision is a balance — one we settle together at the colour separation stage.

Send us your design and we will tell you which mesh and lacquer preparation is right for it.

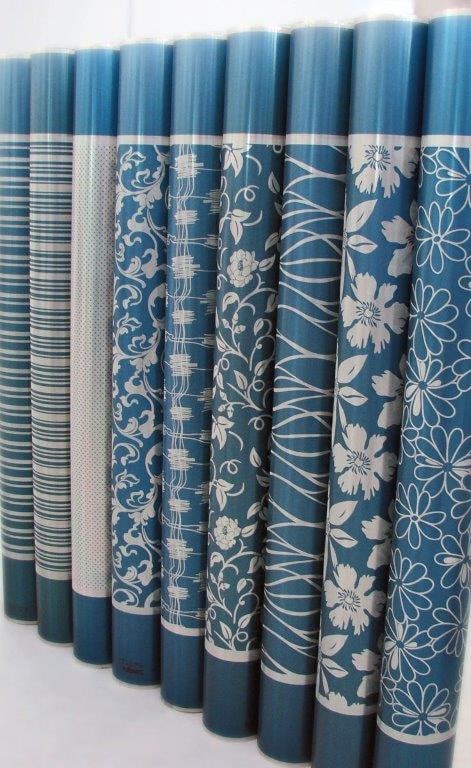

Rotary printing screens engraved with different designs side by side: stripes, damask, florals and solid grounds
Screens off the same line — from stripes to florals

On this line

Machines and software.

Laser engraving
STK LEN-3000Rotary textile screens
STK BESTLEN-5113Rotary textile screens
Colour separation
STK 4000 CADTextile colour separation
BEST IMAGE CADTextile colour separation
Adobe PhotoshopLatest version
Operator working on a rotary screen at a vertical machine
Screen preparation line

Send us the dimensions, we'll send the price.

Industry, material and size are enough. No artwork needed at the quotation stage.
